I/O Module - Low Voltage Controller
Integrate alarm sensors, electric door strikes, and contact closures as part of your Insteon home automation network.
Often Bought Together
Insteon multi-tool
Convert wired sensors to Insteon
Control low voltage electronics
Multiple relay configurations
Scenarios
See some of the ways you can use the IO ModuleInterface with your opener motors' contact closure inputs* and add control from a keypad button anywhere in the house. Add a wired sensor to the I/O module and get status displayed as well. Check out our pre-built kit.
*Must be analog inputs. Will not work with digital input/outputs.
Build your own electric door lockThe built-in relay can be wired to control electric door strikes or deadbolts that run off up to 5A @ 30 Volts (AC or DC). Control can be done via Insteon Keypad button or even your mobile phone via Insteon Hub.
Automatically shutoff water to the house in the event of a leakInstall an electric water valve on your incoming water main and then wire it to the relay output on the I/O Module. Add Insteon water leak sensors throughout the house and have them trigger the I/O Module when water is present.
Works With...Everything
The Insteon I/O Module can be linked to a vast array of devices within the Insteon ecosystem
Compatible with other Insteon switches, keypads, sensors, remotes, plugs, outlets plus more!
Rock-Solid Range and Reliability
Unlike other connected home switches that use Wi-Fi or other radio-only signals, Insteon utilizes a patented dual-band (power lines + wireless radio) mesh technology for 100% home coverage
What does that mean? It just works
Next-Level Control & Convenience
The Insteon Hub, together with our Director mobile app, gives you access to easier set up and editing of devices and scenes, setting schedules, and adding device-specific notifications
And get voice control with Amazon Alexa and Google Home
Essential info
Integrate alarm sensors, electric door strikes, and contact closures as part of your Insteon home automation network.
Remote Control
Monitor and control pool valves, electric door strikes, garage doors and more using your Insteon network.
4 Output Relay Modes
Control and integrate many different types of devices to control Insteon lights and appliances using standard sensors.
Control many Insteon devices throughout the house with one dry-contact sensor input. Plus, use the built-in single-pole double-throw (SPDT) switch, connect any low voltage powered device for continuous or momentary operation.
I/O Module's Flexibility
I/O Module's flexible output relay can control many different types of low voltage devices, from pool valves to electric door strikes to garage doors due to its different relay modes. When controlling devices like pool valves, you will want the ability to leave it on for an extended period of time, giving it plenty of time to fill the pool. As it approaches the desired water level, then you can remotely turn it off. For devices like electric door strikes, set I/O Module's output relay to momentary, allowing you open the front gate using a Mini Remote*, Keypad button or any other Insteon controller.
A third version of I/O Module's momentary mode allows you to remotely press your garage door button with an Insteon On command, but only if your garage is currently closed. This allows you to open your garage with On command and close it with an Off command. Because I/O Module uses a garage door sensor to know whether the door is open or closed, it only controls the garage when it needs to.
Need some wire with your purchase? We have a 20 Foot 2 Conductor, 22-Gauge/AWG Interconnect Wire.
*I/O Module communicates via power line only so if you intend to control it by a Mini Remote (which is RF only), you'll need at least one dual-band Insteon device such as a plug-in module or wall switch to bridge the gap.
Mechanical
I/O Terminals 5V (10mA), GND, Sense, N/C, N/O, Common (28-16 gauge wire)
Input jack 1/8" mini jack input (GND, Sense)
Input Type Contact closure only
Output Relay Capacity 5A @ 30 Volts (AC or DC)
Operating Conditions Indoors, 32 to 104°, up to 85% relative humidity

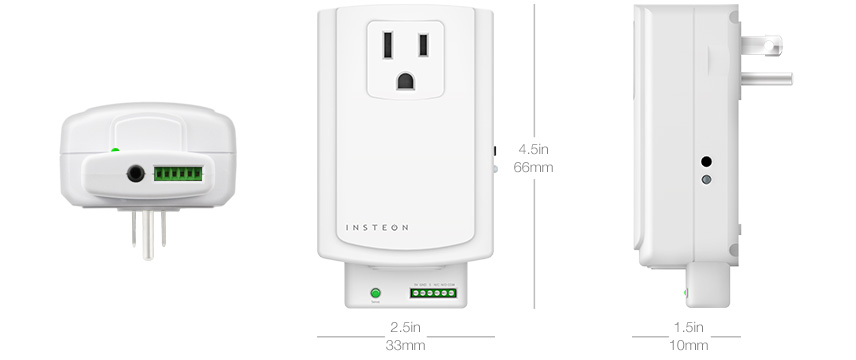

Dimensions 4.5" H x 2.5" W x 1.5" D
Weight 4.6 oz
Electrical
Supply Voltage 120 Volts AC +/- 10%, 60 Hertz, single phase
Sensor Input 1/8" mini jack input (GND, Sense)
Power Plug 3-pin grounded
Pass-through Outlet Uncontrolled 3-prong (with ground), 120V, 15A
Power Consumption 0.93 Watts
Certification Safety tested for use in USA and Canada
Shipping costs are calculated based on location and are available when checking out. Shipping delivery times are based on the date the order ships.
Orders placed by 12pm PT (Monday-Friday, non-holiday) are expected to ship the same day. Â Orders placed after 12pm PT are expected to ship the following business day.
Customers shipping to Canada will be responsible for all duties and import fees which will be due upon receipt.
PRODUCT WARRANTY
New Products
New items have a 30-day return window and are warrantied for 2 years from the purchase date.
Refurbished Products
Refurbished items are guaranteed to be in good working condition but may have physical imperfections and/or may not include original packaging and documentation. If the product fails to work, you may exchange it for like product within 30 days of receipt.
Clearance Products
Clearance items are sold as-is and do not carry a warranty.
RETURNS AND EXCHANGES
New Product Returns
All products must be returned within 30 days of the shipped date, in new condition and in the original packaging (refunds exclude shipping fees). A Return Merchandise Authorization number must be obtained from Insteon customer support prior to returning the new product.
After 30 days of the shipped date, no refunds will be processed by Insteon. If the Product is defective, requires an exchange or falls under warranty, Insteon will direct you to customer support for further information.
Warranty Returns
Defective Products returned within 30 days of the shipped date will be replaced at no cost to you and Insteon will cover the return shipping costs when using USPS Ground Advantage. Contact support@insteon.com for a Return Merchandise Authorization number and further instructions.
After 30 days of the shipped date, no exchange will be processed by Insteon. If the product is defective, requires an exchange or falls under warranty, please contact Insteon customer support at support@insteon.com for further information
- 5 stars: 16 (76%)
- 4 stars: 1 (5%)
- 3 stars: 2 (10%)
- 2 stars: 1 (5%)
- 1 star: 1 (5%)
My tesla parks in the driveway…Garage is a woodworking shop. Built a small cabinet on the side of the house to hold the charging cable. Used the I/O Module to activate an electric lock on the door that can be accessed via my phone.
Also I used a mini on off module triggered via a 2 channel remote connected to Homelink to also open the charger door and trigger a Scene to turn on lights in the house when we arrive home.
I had these at my last house for a number of years monitoring the furnace, monitor & control the garage door, monitor a rain gauge for sprinkler timing and controlling the louvers of my attic vent shutters
In my new to-me-house, I wanted monitor sump depth and sump pump run time. Ordering 2 more i/o modules was a no-brainer. While the sensor install side was more involved, I just plugged the i/o modules in, added to Insteon and added 2 wires each. Works great and every time
Seriously? How long have you been putting out this product and you still don't have a dual band option?
It works, but only if you have great power line communication close to your PLC.
Open/close sensor is at least wireless, but not powered by line, so you have to replace the battery (but who knows how often?).
Thank you for sharing your feedback. We appreciate your insights and will pass them along to our team as we work on future improvements. If you have any further questions or need assistance, feel free to reach out at support@insteon.com.
Used the I/O device to control my garage door when I forget my keys are go on a bike ride it’s nice to have the app
I have 8 of these in my system. I use them for garage doors, driveway gate (the later connected to the gate control board from via one pair of a CAT 6 cable 350' away) and to trigger a number of different things based on specific events. The reason for the "4" rating is because unlike nearly every other Insteon device, they have a shorter life (3 to 5 Years typically) and they are not dual band which means in some situation you need a range extender nearby to perform the dual band function if they are install a long way from the Eisy unit. I do appreciate how versatile they are.
Brand new I/O module out of the box… defective. Took me 2 was to get a working one. Next time I buy it on the WEB for $20. I hope Insteon QC improves, I like the products design.
It works great, BUT it took me about two weeks to get it to work with the patients of your tech support Steve Lee. It turns out that the device will not work with the Insteon "Director" application no matter what Steve and I try to do. I finally installed "Homeboy" on my phone, and it works with the "Homeboy" application. The only problem I have is the "Homeboy" application is not as user friendly as the "Director" so I am jumping back and forth using the "Homeboy" to operate my garage door and "Director" for all the rest of my devices. I would like a resolution to this problem, but I am doing ok. Steve was very patient and helpful. I would like to use more of your products, but I am in the middle of major renovation and no time for upgrades at this time.
It allows to do so much stuff!
I have one to operate the garage door and get status of the door, another one for sprinkler in the yard, one for an electric water valve.
Site indicated it was a low voltage controller but it appears not capable of controlling f low voltage fireplace control
I have purchased these three times. The only reason I bought the second and third is because they eventually fail to function. With that said, the product works perfectly to activate my remote vacuum cleaner outlet.
The I/O module is a replacement of the same device installed about 15-years ago. I am happy with that service life for a device located in the attic in south Texas. This I/O module is being used to detect when the doorbell button is pressed. The relay output rings the doorbell as if the button is pressed. In addition, the input triggers a Switchlinc Relay w/ sense to turn on, which triggers an input to a programmable logic controller (PLC) to initiate a sequence of that open and close solenoids valves that operate a linear pneumatic actuator used to ring an antique bell of a locomotive mounted above our outdoor kitchen. In addition, we have the Insteon Hub initiate ringing of the bell every evening at sunset.
Excellent service and I am still sold on the Insteon products.
So ecstatic that I got hold of Steve in support (wasn’t difficult - my own reluctance prevented my emailing). He’s brilliant and his support was superb (he knows the Insteon technology cold) - he not only fixed my issue with my I/O Linc but also resolved so many questions I had about product, company, ongoing support, etc. I tried a couple other automation systems and found them inconsistent and lacking function compared to Insteon - I was so disappointed thinking I may have to leave the Insteon fold. Now I’m so happy I can stay with Insteon. My I/O Linc works perfectly and I’m so impressed with the new Insteon I will stay with them for the long term.
Thank you for your kind words about our product and Steve in our support team! We are thrilled to hear that he was able to assist you with your I/O Linc and provide answers to all of your questions. We look forward to continuing to provide you with top-notch products and support for the long term. Thanks for choosing Insteon!
I have this wired in to my alarm system so my automation programs can tell when I’m away - works perfectly!
Thank you for sharing your positive experience with our I/O Module! It's great to hear that our product is a perfect fit for your home.
SmartHome used to offer what they called a Somfy drape control that hard-wired this low-voltage controller to a Somfy motorized shade RF controller. A remodeler miswired a chandelier and blew out some of my I/O controllers automating exterior window and door roller shutters with Somfy motors.
I just had to transfer some tiny wires to the Somfy RF transmitters to new Insteon I/O controllers and plug them in.
So happy that Insteon restarted.
Thank you for your review! We're happy that our product was able to seamlessly integrate with your Somfy system. We appreciate your support!
I use the i/o modules in a variety of ways: as garage door sensors and openers, as a pulse control for a hot water recirculation pump (turning on a bathroom light triggers the pump), and as a control for low voltage lighting. The modules work well and are easy to configure with the Universal Devices EISY hub.
In the past, the modules have failed occasionally. I'm hoping the quality has improved at the new insteon.com. Time will tell!
With the director app is very easy to program the i/o module. When my alarm is activated, the i/o module works as scene director and turn on all the house's lights. Greetings from Ecuador.
this is where Insteon shines with a versatile product like this. Gives the ability to control and read low-voltage contacts and states. Very handy for custom controls.
I’m replacing the old insteon 2450 modules that were way past warranty from garage door control kits, but served many years before a lightning storm took them out. Glad these modules are available again. The modules work well and allows my setup to fully function again for opening, closing, monitoring, and retry closing the garage doors.
I got one of these as part of my emergency whole house water shut off system in case of a water leak. I got my second as part of my garage door control. I got my third one, attached to a float switch, to alert me if my sump pump fails. All are easy to set up and work flawlessly.
Thanks for your kind words and glad you've found so many great applications for this device.
I have been using the I/O module for many years and it has always performed flawlessly. There have been instances in the Northeast where lightning storms have taken their toll but that is purely a matter of the function of the installation. My primary use of the I/O is as a chime annunciation controller for gate entry systems such as Door King. The I/O is typically installed in the basement of the home and is triggered via a hard wired connection from either an in ground proximity type loop detector of magnetic probe (which are susceptible to lightning strikes). The I/O the sends an X-10 signal to any number of X-10 chimes in the house. I use the X-10 chimes as they are really the only ones currently available with a fairly pleasing chime annunciation.
I also have used the I/O module for a number of other miscellaneous relay functions with excellent reliability. Great product and I'm very happy it is once again available.
Thank you for sharing!
Is this device dual band? I suspect not. Thanks.
The I/O Module communicates via power line only so if you intend to control it by a Mini Remote (which is RF only), you’ll need at least one dual-band Insteon device such as a plug-in module or wall switch to bridge the gap.
Can you send a PDF manual (or make it available on the web page)?
More specifically, what are the relay contacts rated at? What is the "S" terminal? Is the green "Sense" an LED and if not what is it? What's all that on the the right side?
Thanks,
Dave
Here's the link to the manual: https://cache.insteon.com/documentation/2450-en.pdf
Output relay is rated at 5 Amps @ 30 Volts (AC or DC)
