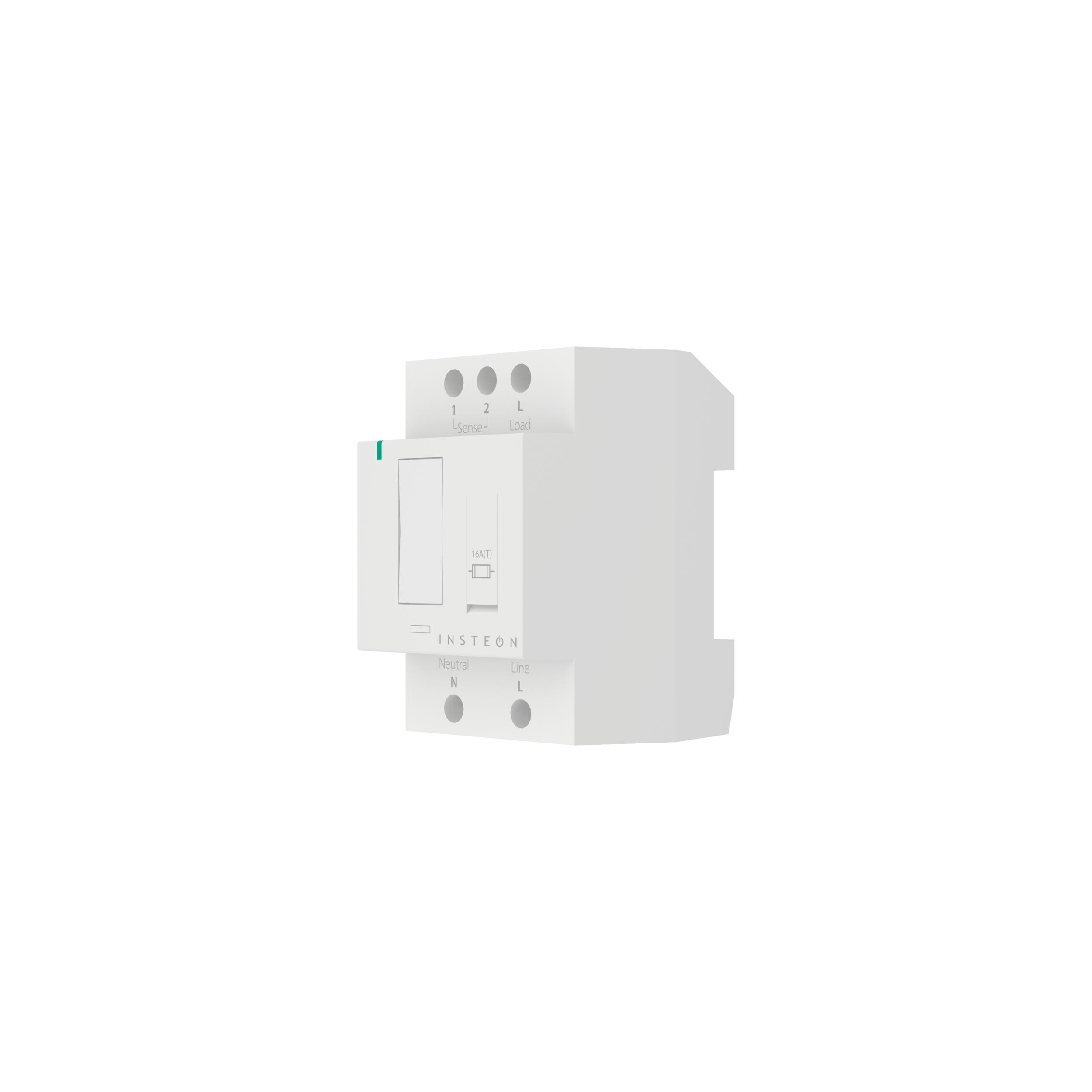

On/Off DIN Rail Module

Insteon DIN Rail On / Off is a module that clips right onto a DIN rail to add a wide variety of customizable remote control options to multiple lights. Also available as a wire-in Dimmer Module.

A DIN rail is a method of mounting electrical devices; it doesn't carry any power, it's just a mounting solution. Multiple Insteon DIN Rail On / Off modules can mount to a single DIN rail making it easy to keep a complicated lighting setup organized.


Essential Info

When planning the electrical wiring for your home or business, avoid adding too many wall switches in a single location. Wall switches ganged together cause homeowner confusion and can quickly ruin the aesthetic of a room. Instead consider adding a single Insteon keypad to control all the lighting. It's easy when combined with Insteon DIN Rail products.

Use of DIN rails is common overseas and in US commercial/industrial buildings. Because of their ease of installation, DIN rails are becoming more popular in the US. DIN rail products provide integrators and builders a more custom and organized way to handle complicated wiring circuits.

Looking for DIN Rails? Get them here
Looking for NEMA 1 Enclosures? Get them here.

The DIN Rail On/Off clips directly onto a 35mm DIN rail and wires to load, power and neutral. Link it to an Insteon keypad or any other Insteon device for full remote control over the module and it's connected load. Specifically, DIN Rail On/Off is compatible with the "Top hat rail EN 50022" (sometimes referred to as a Type O or Type Ω) The DIN Rail On/Off will fit either variation of this style DIN rail (either 15 or 7.5 mm "high" off the mounting surface).



• Add Insteon remote control directly to your Insteon setup
• Snaps onto a DIN rail
• Sense wiring retains local control at the switch
• Compatible with latching, single momentary and dual momentary switches
• Featuring dual-band Insteon technology for the fastest and most reliable performance



Optional Sense Wire Trigger

The DIN Rail On/Off features sense inputs for special applications where a local "dumb" switch might be necessary in addition to remote Insteon control. Sense inputs are compatible with latching, single momentary and dual momentary wall switches. Connect to any style wall switch to match any type of designer theme (antique, push-button, metal, etc.)



Local Control and Insteon Setup

The DIN Rail On/Off has a small paddle that operates exactly the same as the best-selling SwitchLinc paddles. So, you can turn the connected load on or off by tapping the paddle. Furthermore, a setup button is provided for setting up other properties as well as for linking and un-linking. Finally a dual-color (green and red) LED displays the on (green) or off (red) status of the connected load.



Regional Availability

For international compatibility, Insteon DIN Rail On/Off is available in several versions to match local electrical requirements.

• US 2453-222
• EU 2453-422
• AUS / NZ 2453-522


What's in the Box

On/Off DIN Rail Module

1x Quick Start Guide
1x Owner's Manual
