Dimmer Keypad Setup

The content of this document applies to both Insteon Dimmer Keypad (6-Button) and Insteon Dimmer Keypad (8-Button).

Getting Started

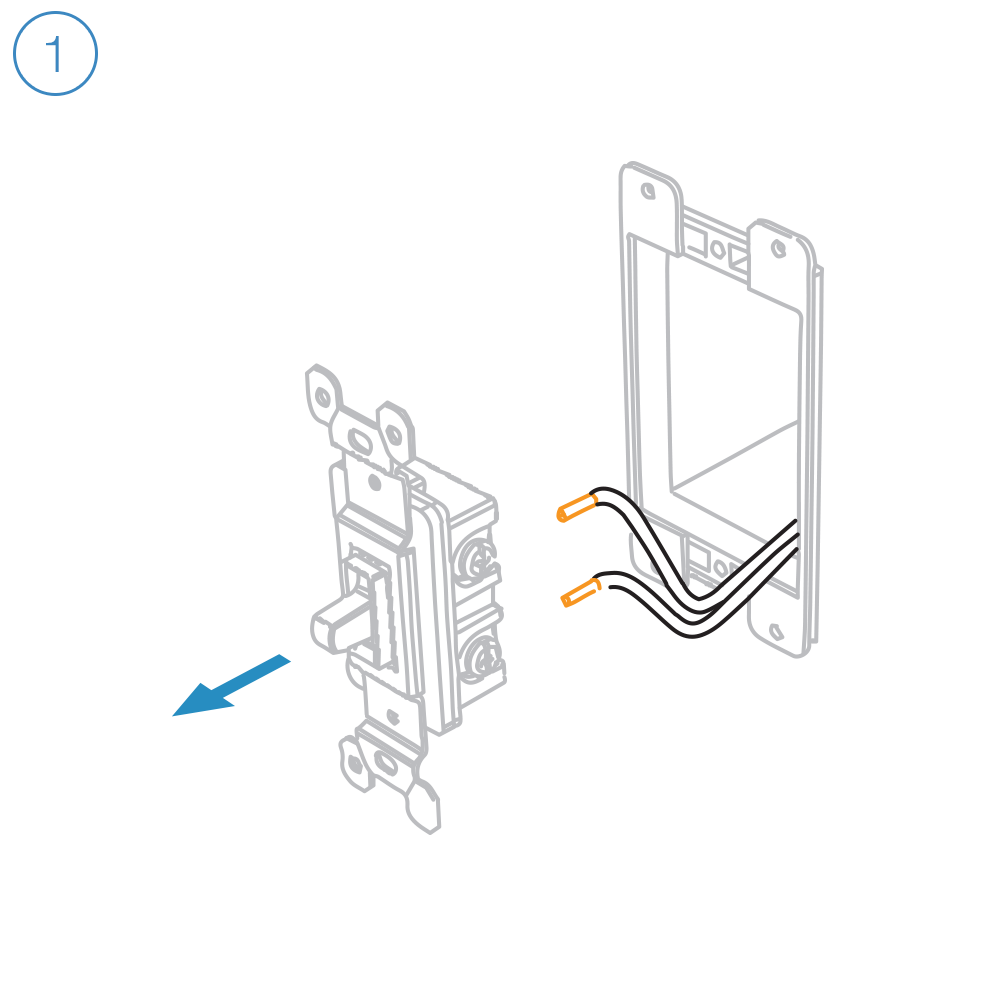

Turn off power at the service panel and remove the existing wall switch.

Unfold all of the wires from the junction box. Separate the black wires and cap them with wire nuts.

If your switch's wires do not match the diagram, consult the additional wiring diagrams available below.

Turn on power and use a voltage detector to identify the live wire; this is your line wire.

Turn off power and connect the corresponding wires from the junction box with the Insteon Wall Keypad and cap them with wire nuts.
Install Insteon Wall Keypad, attach the wall plate and turn on power.

Follow the on-screen instructions in the Insteon app to add Dimmer Keypad.


Bulb Compatability



Only use dimmable bulbs with Insteon Dimmer Keypad
