2663-222

On/Off Outlet Setup

Getting Started

Turn off power at the service panel and remove the existing wall outlet.

Connect the corresponding wires from the junction box to the Insteon Wall Outlet and cap them with wire nuts.

If your outlet's wires do not match the diagram, consult the additional wiring diagrams available below.

Install the Insteon Wall Outlet, attach the wall plate and turn on power.


Follow the on-screen instructions in the Insteon app to add On/Off Outlet.

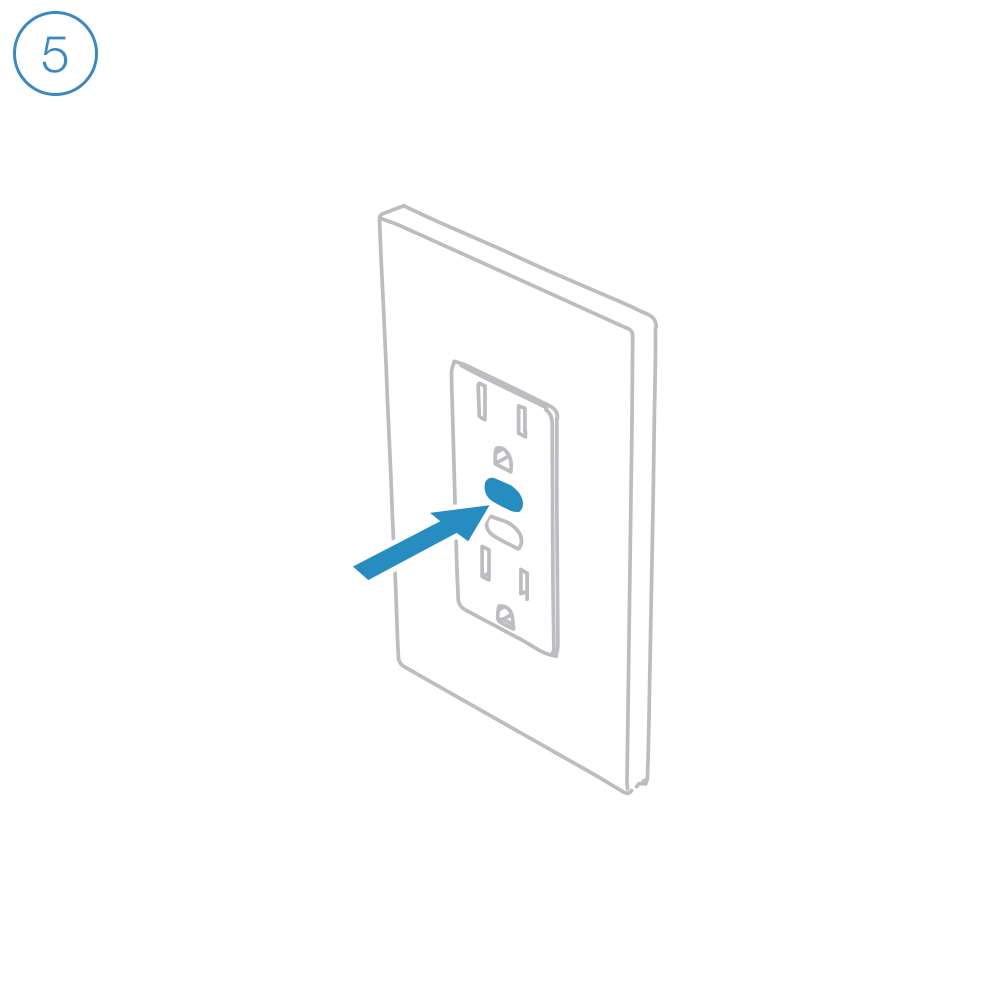

When prompted, press and hold On/Off Outlet's set button until you hear a double beep.



Guides and Manuals

Quick Start Guides

Owner's Manuals



Wiring Diagrams

End of Run Outlet

Connect the Line, Neutral and Ground wires.

Middle of Run Outlet

Connect the Line, Neutral and Ground wires. If your old outlet connected to ground with a pigtail, you can discard it.

Switched Outlet

Connect the Line, Neutral and Ground wires. Disconnect and cap the switched wire (usually red).

In this configuration, the wall switch that controls this outlet will no longer function. If you would like to preserve control of your outlet from the wall switch, replace the switch with Insteon Wall Switch.

switched outlet outlet.png

In the junction box that houses the wall switch, replace the standard switch with an Insteon Wall Switch. Connect the Line, Neutral and Ground wires. Cap the switched wire (usually red). Cap the red load wire on the Insteon Switch.

After wiring is complete, link the Insteon Wall Outlet and Wall Switch together.

  1. Turn on both the Insteon Outlet and the Insteon Wall Switch. On Insteon Wall Switch, press and hold the set button until Wall Switch beeps.
  2. On Insteon Wall Outlet, press and hold the set button for the outlet that you would like to control until Wall Outlet double-beeps.
  3. On Insteon Wall Outlet, press and hold the same set button until Wall Outlet beeps.
  4. On Insteon Wall Switch, press and hold the set button until Wall Switch double-beeps.


Basic Troubleshooting



Factory Resetting Insteon Devices

You can reset Insteon devices and restore them to factory default settings. The procedure to reset an Insteon device varies by device type. Factory resetting an Insteon device will erase all customized settings...

Communication Types for Insteon Devices

Use this article to determine if your Insteon device can communicate with other Insteon devices via powerline-only, wireless-only or powerline and wireless dual-band.

    Powerline Wireless
Dimmer Module 2456D3 Yes -
2457D2X Yes -
2457D2 Yes Yes
On/Off Module 2456S3 Yes -
2635-222 Yes Yes
Outdoor On/Off Module 2456S3E Yes -
2634-222 Yes Yes
LED Bulb 2672-222 Yes Yes
LED Bulb for Recessed Lights 2674-222 Yes Yes
Dimmer Switch 2476D Yes -
2477D Yes Yes
Dimmer Switch (1000W) 2476DH Yes -
2477DH Yes Yes
Dimmer Switch (2-Wire) 2474DWH - Yes
On/Off Switch 2476S Yes -
2477S Yes Yes
Dimmer Keypad
(6-Button or 8-Button)
2486D Yes -
2334-222 Yes Yes
On/Off Keypad
(6-Button or 8-Button)
2486S Yes Yes
2334-232 Yes Yes
Dimmer Outlet 2474DWH Yes Yes
On/Off Outlet (2007) 2473SWH Yes -
On/Off Outlet (2014) 2663-222 Yes Yes
Wired Thermostat 2441TH - Yes
Wireless Thermostat 2441ZTH - Yes
Thermostat Adapter 2441V - Yes
Mini Remote
(Wireless Switch)
2444A3 - Yes
2342-242 - Yes
Mini Remote
(4-Scene)
2444A2WH4 - Yes
2342-232 - Yes
Mini Remote
(8-Scene)
2444A2WH8 - Yes
2342-222 - Yes
Wi-Fi Camera 75790 - -
75790WH - -
HD Wi-Fi Camera 2864-222 - -
2864-226 - -
Outdoor Wi-Fi Camera 75791 - -
HD Outdoor Wi-Fi Camera 2864-232 - -
Open/Close Sensor 2421 - Yes
2843-222 - Yes
Hidden Door Sensor 2845-222 - Yes
Motion Sensor 2420M - Yes
2842-222 - Yes
Leak Sensor 2852-222 - Yes
Smoke Bridge 2982-222 Yes -
IO Module 2450 Yes -
Ceiling Fan Controller 2475F Yes Yes
Dimmer Micro Module 2442-222 Yes Yes
On/Off Micro Module 2443-222 Yes Yes
Open/Close Micro Module 2444-222 Yes Yes
Ballast Dimmer 2475DA2 Yes Yes
Dimmer In-Line Module 2475D Yes -
2475DA1 Yes Yes
On/Off In-Line Module 2475S2 Yes -
2475SDB Yes Yes
220V Load Controller 2477SA1 Yes Yes
2477SA2 Yes Yes
Dimmer DIN Rail Module 2452-222 Yes Yes
On/Off DIN Rail Module 2453-222 Yes Yes
MorningLinc 2458A1 Yes -
Lock Controller 2862-222 Yes -
IRLinc Transmitter 2411T Yes -
IRLinc Receiver 2411R Yes -
SeriaLinc 2410S Yes -
Access Point 2443 Yes Yes
Range Extender 2992-222 Yes Yes
Energy Display 2448A2 - Yes
iMeter Solo 2423A1 Yes -
SynchroLinc 2423A5 Yes -
