On/Off Micro Module Setup

Getting Started

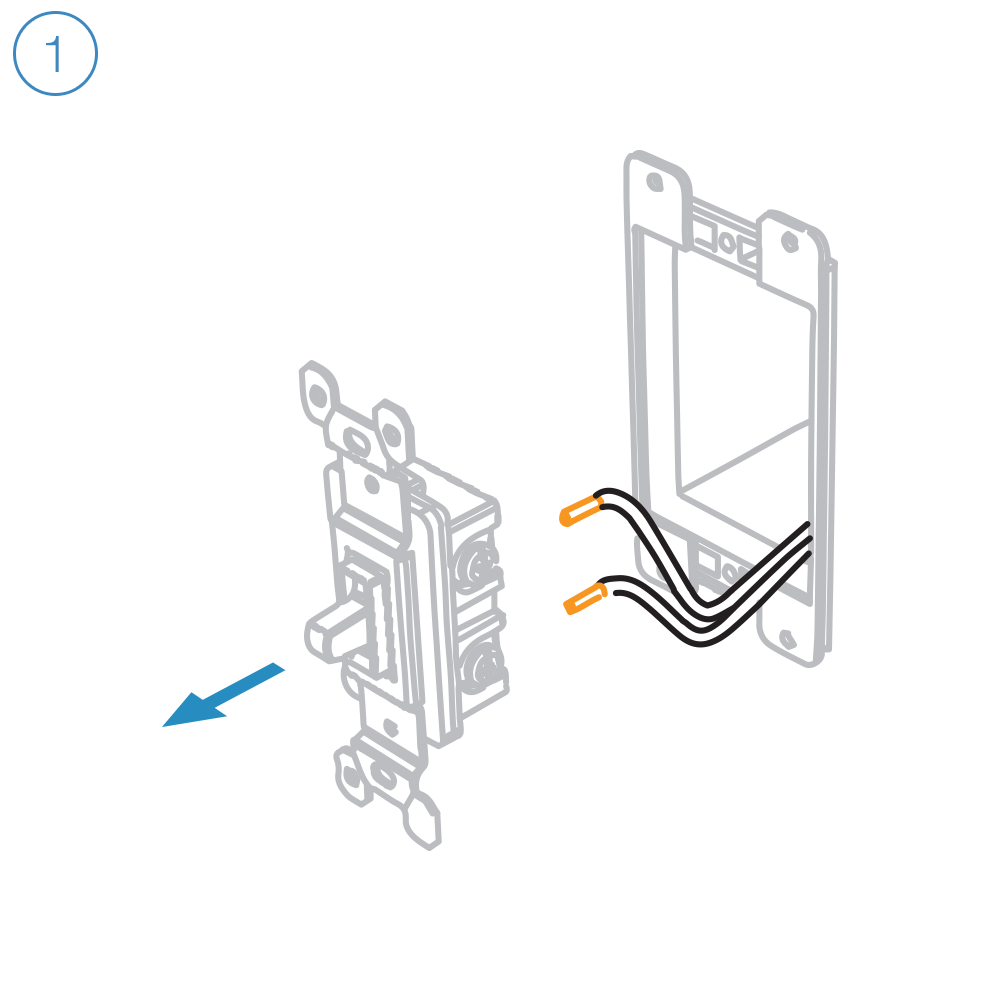

Turn off power at the service panel and remove the existing wall switch.

Unfold all of the wires from within the junction box. Separate the black wires and cap them with wires nuts.

Turn on power and use a voltage detector to identify the live wire; this is your line wire.

Turn off power and connect the corresponding wires.

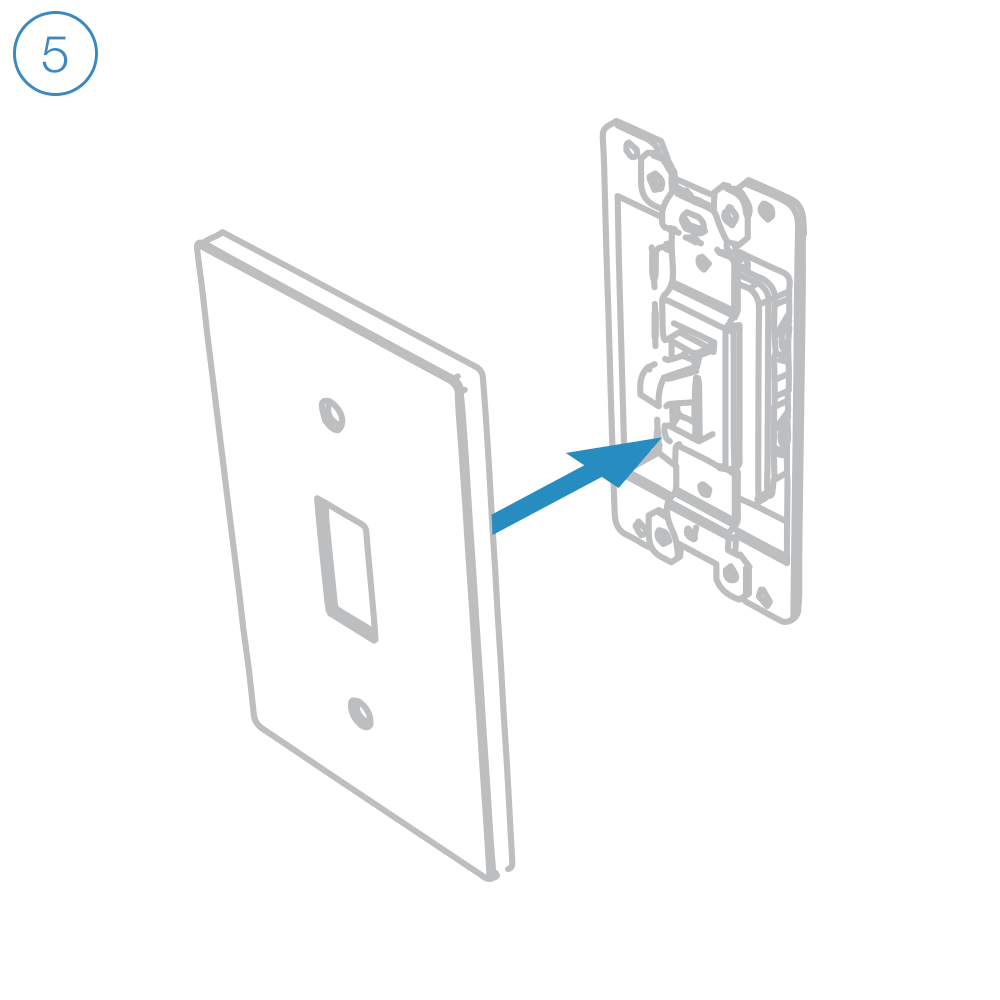

Reinstall your wall switch, attach the wall plate and turn on power.

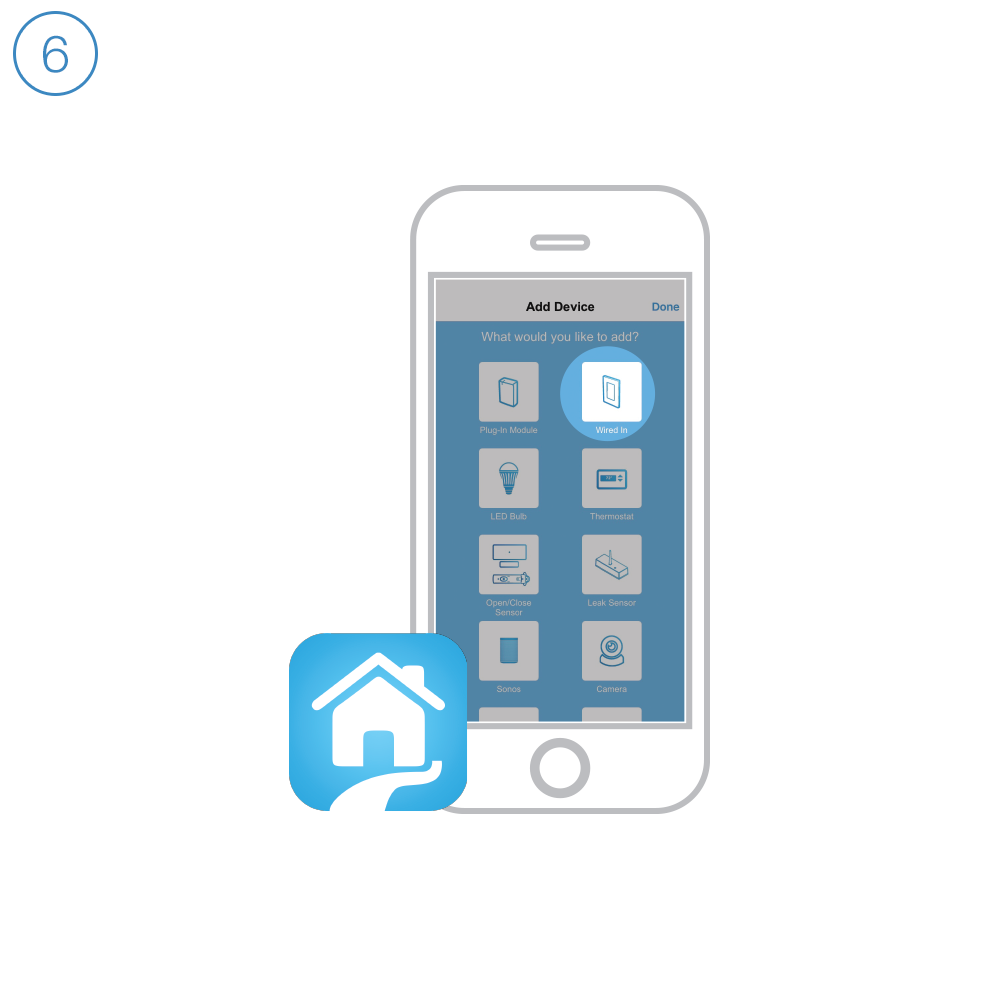

Follow the on-screen instructions in the Insteon app to add Micro Module.
